278: Supplemental Numerics

by Peter McGoron

Status

This SRFI is currently in draft status. Here is an explanation of each status that a SRFI can hold. To provide input on this SRFI, please send email to srfi-278@nospamsrfi.schemers.org. To subscribe to the list, follow these instructions. You can access previous messages via the mailing list archive.

Received: 2026-07-12
60-day deadline: 2026-09-16
Draft #1 published: 2026-07-18
Draft #2 published: 2026-08-05
Peter McGoron's personal Git repo for this SRFI for reference while the SRFI is in draft status (preview)

Abstract

This SRFI defines procedures on Scheme numbers that aim to improve the portability and usefulness of Scheme arithmetic. These procedures include predicates with extended domains, hyperbolic and inverse hyperbolic functions, the R⁶RS numeric tower, and additional procedures for rounding. Also included are recommendations and justifications for mixed inexact/exact arithmetic to make complex number arithmetic more predictable.

Issues

If you have experience with writing numeric procedures like these, I would like your feedback. I have never written code like this before.
I am unsure whether the requirements on the inverse hyperbolic functions are sufficient to capture the behavior shown in the examples.
Incoroporate some tests from Gambit’s test suite.
More tests for the rationalize procedure.
The sample implementation should respect the counter-clockwise rule when dealing with mixed-exactness complex numbers.

Rationale

This SRFI adds a few procedures that can be categorized into the following:

Standard procedures with extended domains (exact-integer?).
Procedures that are common extensions (conjugate, hyperbolic functions).
Procedures that are related to IEEE 754-2019.
Predicates for the R⁶RS numeric tower (real?).

The extended-domain procedures are more useful because they can be used without invoking “it is an error” behavior. For example, in this SRFI, (exact-integer? '()) and (nan? '()) both return #f. In addition, the rationalize procedure has been extended to different types of intervals to make it more useful in simplifying rational numbers while also preserving properties such as rounding.

The common extensions are the conjugate procedure and the (inverse) hyperbolic functions. The (inverse) hyperbolic functions are commonly provided on Schemes that provide complex arithmetic (for example, Gambit, Chez, Racket, Gauche, and Guile) because the implementation of complex inverse trigonometric functions is closely linked to the implementation of complex inverse hyperbolic functions.

The procedure round-away has been added to correspond to the roundTiesToAway rounding mode in IEEE 754-2019.

The R⁶RS number predicates are more useful than the R⁵RS equivalents. This is because the R⁶RS and R⁷RS introduced signed inexact zero to the number system. That means that 1.0+0.0i, 1.0-0.0i, and 1.0 may be distinct. The R⁵RS definition says each of these is real?: this SRFI and the R⁶RS say that only 1.0 is real?, and the other two are not.

The reason for this is the interpretation of the sign of inexact zero. A positive inexact zero is a number that is potentially above zero, but too small for the number format, and similarly for negative inexact zero. Hence a number with an inexact zero imaginary part is potentially not on the real axis. This has consequences for functions that have branch cuts on the real axis, in particular, functions like atanh, which has a branch cut when the real part |x| ≥ 1. For example:

(atanh 2.0+0.0i) ⇒ .5493061443340549+π/2i
(atanh 2.0-0.0i) ⇒ .5493061443340549-π/2i
(angle -1.0+0.0i) ⇒ π
(angle -1.0-0.0i) ⇒ -π

The interpretation of unsigned zero imaginary part is more complicated. One cannot promote unsigned imaginary zero to inexact imaginary zero of a fixed sign. This is because the principal values of log and angle are defined for unsigned imaginary zero such that values are continuous when approached counterclockwise [1]. This is one of the reasons why a number with an exact (unsigned) zero imaginary part is real?, while ones with inexact (signed) zero imaginary part is not real?.

The number predicates are exported with the same names as the standard predicates to make it easier to handle code that assumes the R⁶RS semantics. These procedures are likely to be added to the R⁷RS Large prefixed with strictly-. Hopefully a future standard will change the numeric tower to have the R⁶RS semantics.

Procedures like R⁶RS’s div-and-mod are not supplied. Some proposed extensions to standard procedures, such as gcd on rational arguments, are also not included. These extensions should be relegated to a version of SRFI 141 extended to non-integers.

Specification

Requirement level verbs are in strong text.

The names of arguments have the same requirements as the R⁷RS. It is an error to call a procedure with a list of arguments that do not match the description given here.

When an example evaluates to an inexact number, that number is approximate. The number that an implementation evaluates to should be close in both parts of a complex number to that value. An exception is when one part of a complex value is an infinity or a zero. An implementation should evaluate to a number that has the appropriately signed infinity or zero in that part (in the sense of eqv?).

The examples assume the existence of mixed exactness complex numbers.

Library

The following are exported from the library defined by this SRFI.

conjugate round-away imaginary? real? rational? integer? exact-integer? rationalize nan? sinh cosh tanh asinh acosh atanh

(srfi 278)
procedure (conjugate z)

Returns the complex conjugate of the procedure.

If the implementation distinguishes the sign of inexact zero in the imaginary part of a complex number, then it must flip the sign of the inexact zero.

This procedure returns an exact value given an exact argument.

Note: If non-real complex numbers are not provided, this procedure is just the identity function.

(conjugate 1.0) ⇒ 1.0
(conjugate 1+2i) ⇒ 1-2i
(conjugate 1.0+0.0i) ⇒ 1.0-0.0i
(conjugate 1.0-0.0i) ⇒ 1.0+0.0i

(srfi 278)
procedure

(round-away
                          x)

Round x to an integer, with ties broken by returning the number greater in absolute value. Equivalent to the IEEE 754-2019 [2] rounding mode roundTiesToAway.

This procedure returns an exact value given an exact argument.

When passed an infinity or NaN value, that value is returned.

(round-away 2.5) ⇒ 3.0
(round-away 5/2) ⇒ 3
(round-away 2.4) ⇒ 2.0
(round-away -2.5) ⇒ -3.0
(round-away 3.6) ⇒ 4.0
(round-away 3.5) ⇒ 4.0
(round-away 3.4) ⇒ 3.0

(srfi 278)
procedure (imaginary? obj)

The procedure imaginary? is equivalent to

(define (imaginary? obj)
  (and (complex? obj)
       (eqv? (real-part obj) 0)))

(imaginary? 0.0+1.0i)  ⇒ #f
(imaginary? -0.0+1.0i) ⇒ #f
(imaginary? 1.0i)      ⇒ #t

(srfi 278)
procedure (real? obj)

Returns #t iff obj is complex? and (eqv? 0 (imag-part obj)) is #t.

(real? 1.0) ⇒ #t
(real? 1) ⇒ #t
(real? 1+0i) ⇒ #t
(real? 1.0+0.0i) ⇒ #f
(real? 1.0-0.0i) ⇒ #f

Note: This procedure, along with the rational? and integer? defined in this SRFI, are not compatible with the intended semantics of the identifiers exported from the R⁷RS. They are lifted from the R⁶RS.

(srfi 278)
procedure (rational? obj)

Returns #t iff obj is real? and there exists exact integers k₁, k₂ such that (= obj (/ k₁ k₂)).

(srfi 278)
procedure (integer? obj)

Returns #t iff obj is rational? and (= 1 (denominator obj)).

(srfi 278)
procedure (exact-integer? obj)
(nan? obj)

These procedures are the same as their counterparts in the Reports, except that they return #f when passed an object that is not number?.

Note: Implementations are encouraged to replace the versions of these procedures in (scheme base) with the one defined in this SRFI. The ones defined in this SRFI are backwards-compatible with the versions described in the R⁷RS.

(srfi 278)
procedure

(rationalize x
                                         y)

(rationalize x
                                         delta-lower
                                         delta-upper
                                         [lower-inclusive?
                                          upper-inclusive?])

It is an error if delta-lower and delta-upper are not both reals. It is an error if x is not finite. It is an error if the interval described by the arguments is empty; this can only happen when delta-lower and delta-upper are both zero, and both bounds are not inclusive.

This procedure is like rationalize in the R⁷RS. When delta-lower and delta-upper is specified, then the simplest rational between x−|delta-lower| and x+|delta-higher| is returned.

When lower-inclusive? is true, the lower bound of the range is inclusive; otherwise, it is exclusive. When upper-inclusive? is true, the upper bound of the range is inclusive; otherwise, it is exclusive. For example, (rationalize x -1 +1 #f #t) covers the range (x-1,x+1].

Rationale: This version of rationalize allows for finer control over the bounds, which is particularly important when converting floating-point numbers into rationals. For example, one can rationalize a floating point number f (that is not a power of two) by considering the numbers around it that would round to it. Let ε be the quantum of f. In the default round-to-even mode, the interval of rationals that round to f is (f-ε/2,f+ε/2) when the mantissa is odd, and [f-ε/2,f+ε/2] when the mantissa is even. When f is a normal power of two, then the range is [f-ε/4,f+ε/2], because the left interval is in a different binade. When f is a positive floating-point number in round towards zero mode, then the interval is [f,f+ε).

A procedure called real->rational appears in Gauche, with similar behavior to this procedure.

Implementations are encouraged to replace rationalize in (scheme base) with the one specified in this SRFI. The version in this SRFI are backwards-compatible with the version described in the R⁷RS.

(srfi 278)
procedure (sinh z)
(cosh z)
(tanh z)

Calculates the value of the hyperbolic function for z.

(sinh 0) ⇒ 0
(sinh +inf.0) ⇒ +inf.0
(sinh -inf.0) ⇒ -inf.0
(cosh 0) ⇒ 1
(cosh +inf.0) ⇒ +inf.0
(cosh -inf.0) ⇒ +inf.0
(sinh +1.0i) ⇒ +.8414709848078965i

(srfi 278)
procedure (asinh z)
(acosh z)
(atanh z)

Calculates the principal value of the inverse hyperbolic function at z.

It is an error to call these values on exact numbers on a location where the procedure is undefined mathematically. The implementation should raise an exception in such a scenario.

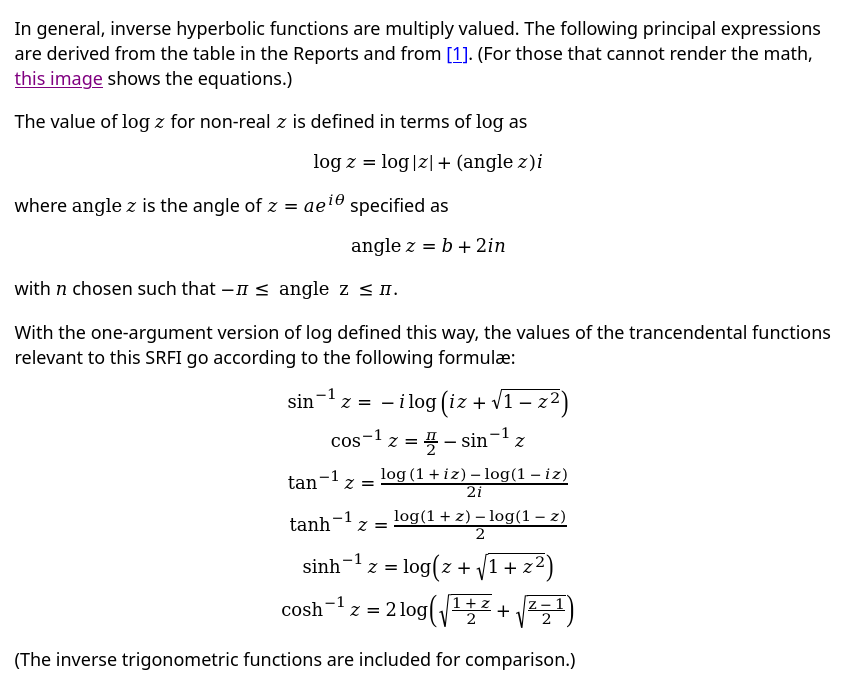

In general, inverse hyperbolic functions are multiply valued. The following principal expressions are derived from the table in the Reports and from [1]. (For those that cannot render the math, this image shows the equations.)

The value of $\log z$ for non-real $z$ is defined in terms of $\log$ as

\log z = \log | z | + (angle z) i

where $angle z$ is the angle of $z = a e^{i θ}$ specified as

angle z = b + 2 i n

with $n$ chosen such that $- π \leq angle z \leq π$ . When zero is unsigned, the principal expression for angle is $- π < angle z \leq π$ .

The principal expression for square root is $\sqrt{z} = z^{1 / 2}$ .

With log and square root defined this way, the values of the transcendental functions relevant to this SRFI go according to the following formulæ:

\begin{matrix} \sin^{- 1} z = - i \log (i z + \sqrt{1 - z^{2}}) \\ \cos^{- 1} z = \frac{π}{2} - \sin^{- 1} z \\ \tan^{- 1} z = \frac{\log (1 + i z) - \log (1 - i z)}{2 i} \\ \tanh^{- 1} z = \frac{\log (1 + z) - \log (1 - z)}{2} \\ \sinh^{- 1} z = \log (z + \sqrt{1 + z^{2}}) \\ \cosh^{- 1} z = 2 \log (\sqrt{\frac{1 + z}{2}} + \sqrt{\frac{z - 1}{2}}) \end{matrix}

(The inverse trigonometric functions are included for comparison.)

When an implementation distinguishes the sign of inexact zero in some number, and if that number lies on a branch cut, then the implementation must return a value reasonably close to the appropriate one-sided limit of the function approaching the branch cut.

(atanh 1.0+0.0i) ⇒ +inf.0+.7853981633974483i
(atanh 1.0-0.0i) ⇒ +inf.0-.7853981633974483i
(atanh -1.0+0.0i) ⇒ -inf.0+.7853981633974483i
(atanh -1.0-0.0i) ⇒ -inf.0-.7853981633974483i
(atanh 0.0+1.0i) ⇒ 0.0+0.7853981633974483i
(atanh 1) ⇒ error
(atanh -1) ⇒ error
(atanh 0.0-1.0i) ⇒ 0.0-.7853981633974483i
(acosh 0.0+0.0i) ⇒ 0.+1.5707963267948966i
(acosh 0.0-0.0i) ⇒ 0.-1.5707963267948966i
(acosh 1.0+0.0i) ⇒ 0.+3.141592653589793i
(acosh 1.0-0.0i) ⇒ 0.-3.141592653589793i
(asinh 0.0+2.0i) ⇒ 1.3169578969248166+1.5707963267948966i
(asinh -0.0+2.0i) ⇒ -1.3169578969248166+1.5707963267948966i

If an implementation allows mixed exactness complex numbers and an implementation can determine that the imaginary or real part of a result is exact, then the implementation should return a mixed-exactness result:

(atanh 0-1.0i) ⇒ -.7853981633974483i

¶ Provisions for mixed arithmetic

Some implementations of mixed real-complex arithmetic are not implemented such that the following identities are followed:

(* 1 z)    ⇒ z
(* +i (* +i (* +i (* +i z)))) ⇒ z

This happens when z has an infinity/NaN in the real or imaginary part. Implementations should implement the following (for any Scheme number z, including infinities, NaNs, and inexact numbers), which allow for the above identities to work:

Support for mixed exactness complex numbers. These are complex numbers with exact real parts and inexact imaginary parts, or inexact real parts and exact imaginary parts.
(* 0 z) ⇒ 0 .
(/ 0 z) ⇒ 0.
(+ 0 z) ⇒ z.
Make (- 0 z) equivalent to (- z).

For example, in an implementation that uses the above rules, (* 1.0 +inf.0+2.0i) becomes

(make-rectangular (- (* 1.0 +inf.0) (* 0 2.0))
                  (+ (* 1.0 2.0) (* 0 +inf.0))) ⇒ +inf.0+2.0i

Note the expression (* 0 +inf.0). If the implementation converted 0 to 0.0, then the implementation would have instead evaluated to +inf.0+nan.0i.

¶ Special exact values for trancendental functions

Implementations should return exact results for the following special arguments to transcendental functions.

(sinh 0) ⇒ 0
(cosh 0) ⇒ 1
(tanh 0) ⇒ 0
(asinh 0) ⇒ 0
(acosh 1) ⇒ 0
(atanh 0) ⇒ 0
(log 1) ⇒ 0
(exp 0) ⇒ 1
(sin 0) ⇒ 0
(cos 0) ⇒ 1
(tan 0) ⇒ 0
(atan 0) ⇒ 0
(asin 0) ⇒ 0

Implementation

A sample R⁷RS implementation is available in the SRFI repository. It depends on complex numbers, inexact numbers, SRFI 144, inexact infinities, and signed zeroes. The sample implementation has been tested on Chibi Scheme, Gauche, and CHICKEN 6. A test suite that depends on those features is also available.

An implementation without complex numbers support can copy the implementations of the (inverse) hyperbolic functions from SRFI 144 instead of using the implementation in this repository. The other parts of the implementation are portable R⁷RS.

Acknowledgements

I thank Bradley Lucier for writing high-quality implementations of the (inverse) hyperbolic functions for Gambit, and also for his feedback on drafts of this SRFI. I have used Gambit to check that my code outputs the correct values.

I thank William Kahan for doing the hard part for me (and many other people).

References

[1]: Kahan, W. Branch cuts for complex elementary functions; or, Much ado about nothing's sign bit. In Iserles, A., and Powell, M. (eds.), The state of the art in numerical analysis. Clarendon Press (1987) pp 165-211.

[2]: IEEE Computer Society. IEEE Standard for Floating-Point Arithmetic (IEEE STD 754-2019). doi:10.1109/IEEESTD.2019.8766229. (2019). ISBN 978-1-5044-5924-2.
